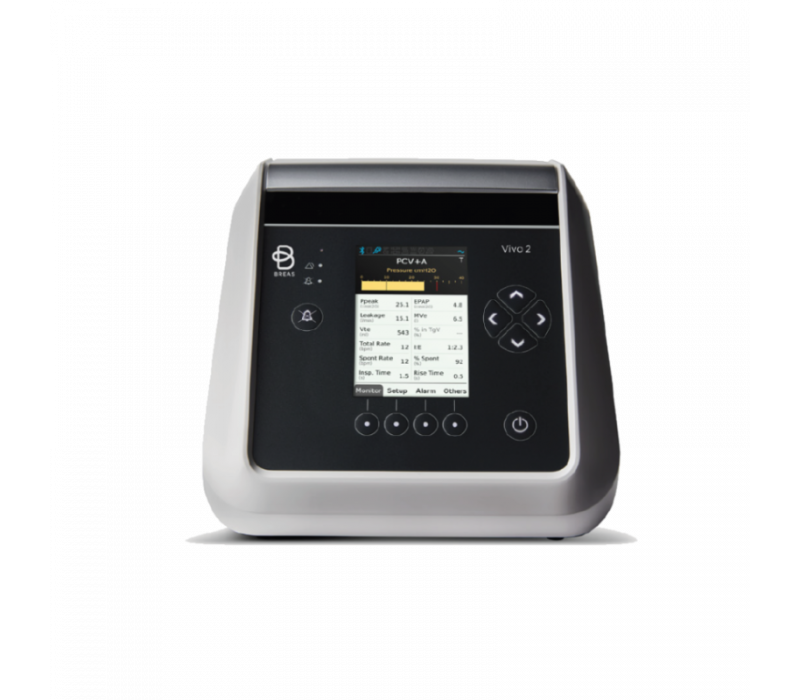

BREAS Vivo 2 – Adaptable Bi-Level Ventilator
- Availability: Pre-Order
- Brand: Breas
- Product Code: Vivo 2
The Vivo 2 is a bi-level ventilator designed to prioritize patient comfort and ease of use. It offers personalized and comfortable non-invasive respiratory support for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures straightforward operation, making it user-friendly and accessible. In addition, a comprehensive set of modes and extensive monitoring capabilities enhances communication between the device and healthcare professionals, allowing for greater flexibility and ensuring optimal patient care.
Key Features :
- One platform − three models
- Lightweight and compact
- Integrated humidifier with heated wire circuit
- Wide range of modes
- Adult and paediatric (>10 kg)
- Intuitive interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
- Making connected care more insightful − secure cloud-based remote connectivity solution
- PC Software – desktop-based with Live Viewer
Product Specification :
- Ventilation Modes: S, ST, T, PSV, PCV+A , CPAP
- IPAP: 4–30 cmH2O
- EPAP: 2–20 cmH2O
- NBreath Rate / Back-up Rate: 0–40 bpm
- Inspiratory Time: 0.3–3 s
- Rise Time: 1–9, Auto is similar to setting 3
- Inspiratory Trigger: 1–9, Auto is similar to setting 3
- Expiratory Trigger: 1–9, Auto is similar to setting 5
- Minimum Inspiratory Time: Off, 0.3–3 s
- Maximum Inspiratory Time: Off, 0.3–3 s
- Target Volume: Off, 100–1500 ml
- Ramp (Up / Down): Off, 10–60 min
- Auto-EPAP: On / Off, Pressure Limit: Max EPAP +2 cmH2O–30 cmH2O, PS 2–28 cmH2O, Min / Max EPAP: 2–20 cmH2O, EPAP Step: 0.5–2 cmH2O, Relax Time: 2–12 min/ Off
- Humidifier Level: 1–5
- Heated Circuit: Off, 1–5
- Patient Circuit: 15 mm, 22 mm
- O2 Bleed in (Device): 0–30 l/ min
- Mains Supply: 100–240 V AC
- External DC: 12–24 V
- Xpac Extended-life Backup Battery (optional): 36 hours (IPAP 20 cm/EPAP 8 cm, Rate 15 bpm)
Dimensions :
- W x H x D: 166 x 185 x 200 mm
- Weight: 1.6 kg
- Noise Level (at 10 cmH2O constant pressure)
- Less than 28 dB(A)
Connectivity and Software :
- Built-in Connectivity: USB
- Compatible Software: PC Software, EveryWare Remote Connectivity Solution
- Plug-and-Play Accessories: SpO2, Nurse Call, Remote Alarm, Accessories Box
Other :
- Humidification: Integrable water chamber
- Circuits: Cleanable and disposable leakage circuits with / without heated wires
- Confirm Stop: On, Off
- Compliance/Therapy Data (on screen): Compliance/Usage Data, AHI, AI, HI, IPAP, EPAP, Leakage, Vte, MVe, Total Rate, % Spont Breaths, Insp Time, I:E
Accessories and Product Warranty :
- Standard masks and accessories are included. If you need other accessories, please contact us before you purchase.
- 2 years warranty after purchase. We warrant the product to be free from defects in materials and workmanship in the first year after purchase when used normally, but maintenance costs will be calculated separately in the second year.
- All accessories are consumables, and not including maintenance.
- A free of charge Oximetry Test Report will be provided once a year.
