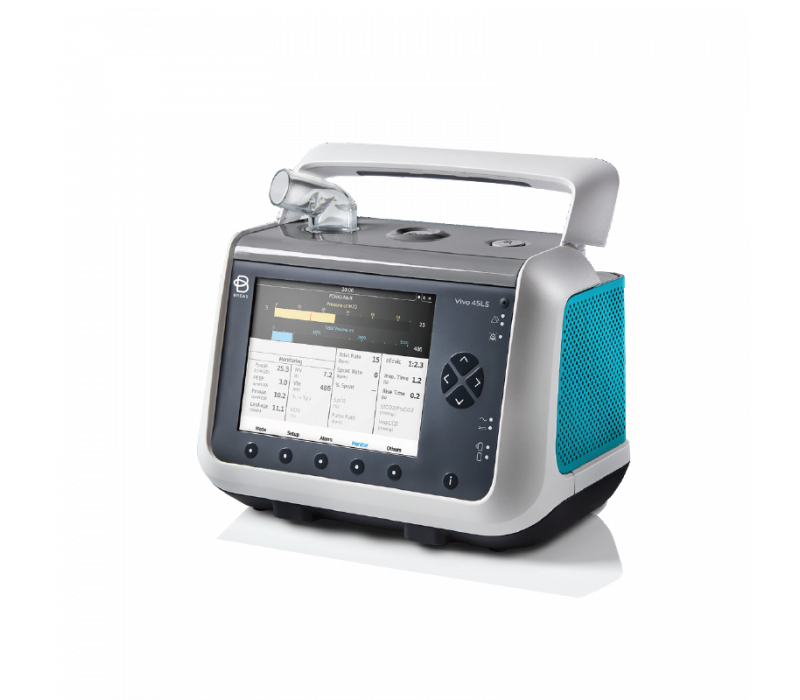

Vivo 45LS – DESIGNED FOR EVERYDAY LIFE. Comfortable. Compact. Connected.
To treat a diverse range of respiratory conditions, a ventilator must provide exceptional clinical versatility and performance. Equally vital is its design, taking into account the patient's daily routines, activities, and every day environment. This led to the creation of the Vivo 45LS, a life support ventilator designed for adult and pediatric patients (5 kg and above), which has been meticulously engineered to boost independence and mobility. Featuring both passive and active exhalation valve circuit options, the Vivo 45LS provides a tailored solution to meet individual patient needs.
To treat a diverse range of respiratory conditions, a ventilator must provide exceptional clinical versatility and performance. Equally vital is its design, taking into account the patient's daily routines, activities, and every day environment. This led to the creation of the Vivo 45LS, a life support ventilator designed for adult and pediatric patients (5 kg and above), which has been meticulously engineered to boost independence and mobility. Featuring both passive and active exhalation valve circuit options, the Vivo 45LS provides a tailored solution to meet individual patient needs.
Key Features :
- DESIGNED FOR EVERYDAY LIFE
- Lightweight and compact
- Integrated humidifier with heated wire circuit
- Internal battery 3 hours
- Wide range of modes
- Adult and paediatric (more than 10 kg)
- Intuitive interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
- Making connected care more insightful − secure cloud-based remote connectivity solution
- PC Software – desktop-based with Live Viewer
Product Specification :
- Ventilation Modes: PSV, PSV–AE, PSV(TgV), PSV(TgV)–AE, PCV, PCV–AE, PCV(TgV), PCV(TgV)–AE, PCV(A), PCV(A)–AE, PCV(A+TgV), PCV(A+TgV)–AE, CPAP, VCV, VCV(A), VCV–MPV, VCV–SIMV, PCV–SIMV, PCV–MPV
- Patient Modes: Adult/Paediatric (more than 5 kg)
- Device Modes: Home/Clinical
- Settings Profiles: Three profiles
- Inspiratory Pressure: 4–50 cmH2O
- PEEP: Off, 2–20 cmH2O
- Breath Rate / Back-up Rate: Adults: 4–40 bpm, Paediatrics: 6–60 bpm
- Inspiratory Time: 0.3–5 s
- Backup Inspiratory Time: 0.3–5 s (PSV)
- Rise Time: 1–9 (PSV, PCV), 50–90 %, Off (VCV)
- Inspiratory Trigger: 1–9 (PSV, PCV, VCV), Off (PCV, VCV)
- Expiratory Trigger: 1–9 (PSV, PSV(TgV) and SIMV Modes)
- Minimum Inspiratory Time: Off, 0.3–3 s
- Maximum Inspiratory Time: Off, 0.3–5 s
- Target Volume: Adults: 300–2000 ml, Paediatrics: 50–500 ml
- Auto-EPAP: On / Off, Min / Max EPAP: 2–20 cmH2O, PS: 2–50 cmH2O –Max EPAP, EPAP Step: 0.5–2 cmH2O, Relax Time: 120–720 sec / Off, Min PS / Max PS: 2–50 cmH2O, –Max EPAP, Pressure Limit: Max EPAP +2 cmH2O–50 cmH2O
Monitoring :
- Displayed Data: Ppeak, PEEP, Pmean, Leakage, MV, Vt, FiO2, % in TgV, Total Rate, Spont Rate, % Spont, SpO2, Pulse, Rate, I:E, Inspiratory Time, Rise Time, EtCO2, PtcCO2, AHI
- Waveforms: Pressure, Flow, Volume, EtCO2, Effort Belts
- Trends over 1, 6, 24, 48 h and 10 days on device screen: Ppeak, PEEP, Total Rate, Spont Rate, Vt, Leakage, SpO2, EtCO2, PtcCO2
Dimensions :
- W x H x D: 216 x 159 x 152 mm
- Weight: 2.4 kg
- Noise Level (at 10 cmH2O constant pressure): Less than 28 dB(A)
Connectivity and Software :
- Ethernet, USB
- Compatible Software: PC Software, EveryWare Remote Connectivity Solution
- Plug-and-Play Accessories: SpO2, FiO2, PtcCO2, EtCO2, Effort Belts, Nurse Call, Remote Alarm, Remote Start / Stop
Other :
- Humidification: Integrable water chamber
- Circuits: Disposable leakage circuits with / without heated wires, Disposable exhalation valve circuits, Disposable MPV circuits
- Intended use: Intended use: The Vivo 45LS ventilator is intended to provide continuous or intermittent ventilatory support for patients weighing over 5 kg (11 lbs) who require mechanical ventilation. The Vivo 45LS with the SpO2 is intended to measure functional oxygen saturation of arterial hemoglobin (%SpO2) and pulse rate. The Vivo 45LS with the CO2 sensor is intended to measure CO2 in the inspiratory and expiratory gas. The device is intended to be used in home, institution, hospitals and portable applications such as wheelchairs and gurneys. It may be used for both invasive and non-invasive ventilation. The Vivo 45LS is not intended to be used as an emergency transport or critical care ventilator.
Accessories and Product Warranty :
- Standard masks and accessories are included. If you need other accessories, please contact us before you purchase.
- 2 years warranty after purchase. We warrant the product to be free from defects in materials and workmanship in the first year after purchase when used normally, but maintenance costs will be calculated separately in the second year.
- All accessories are consumables, and not including maintenance.
- A free of charge Oximetry Test Report will be provided once a year.
