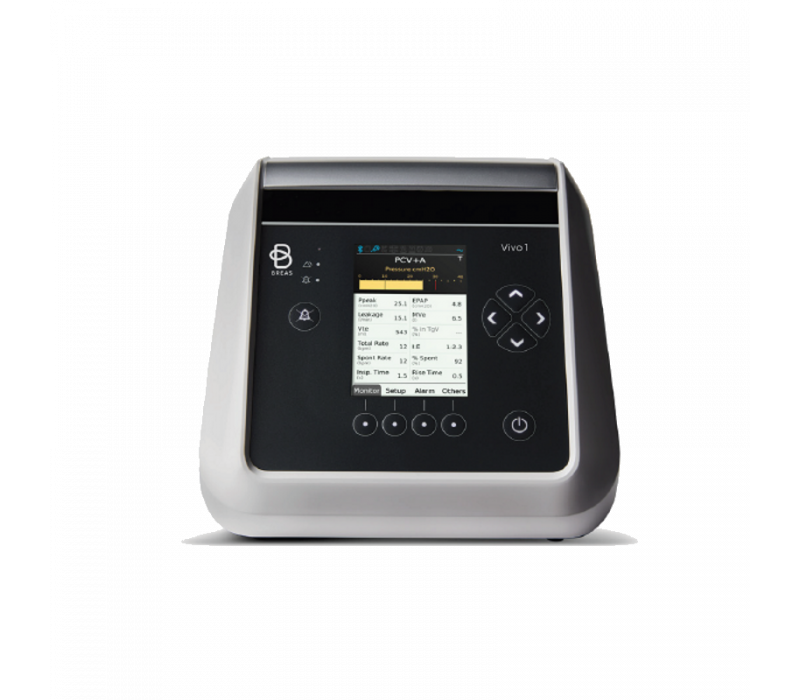

The Vivo 1 is a lightweight and compact bi-level ventilator, designed with a strong focus on patient comfort and simplicity. The device provides personalized and gentle non-invasive respiratory support to bring relief to individuals with chronic breathing issues. The user-friendly interface is designed with care and ensures ease of use, while various modes and monitoring capabilities enable effective communication with healthcare professionals to ensure optimal care.
Key Features :
- One platform − three models
- Lightweight and compact
- Integrated humidifier with heated wire circuit
- Wide range of modes
- Adult and paediatric (>10 kg)
- Intuitive interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
- Making connected care more insightful − secure cloud-based remote connectivity solution
- PC Software – desktop-based with Live Viewer
Product Specification :
- Ventilation Modes: S, ST, PSV, CPAP
- IPAP: 4–25 cmH2O
- EPAP: 2–20 cmH2O
- NBreath Rate / Back-up Rate: 0–40 bpm
- Inspiratory Time: 0.3–3 s
- Rise Time: 1–9, Auto is similar to setting 3
- Inspiratory Trigger: 1–9, Auto is similar to setting 3
- Expiratory Trigger: 1–9, Auto is similar to setting 5
- Minimum Inspiratory Time: Off, 0.3–3 s
- Maximum Inspiratory Time: Off, 0.3–3 s
- Ramp (Up / Down): Off, 10–60 min
- Auto-EPAP: On / Off, Pressure Limit: Max EPAP +2 cmH2O–25 cmH2O, PS 2–23 cmH2O, Min/Max EPAP: 2–20 cmH2O, EPAP Step: 0.5–2 cmH2O, Relax Time: 2–12 min/Off
- Humidifier Level: 1–5
- Heated Circuit: Off, 1–5
- Patient Circuit: 15 mm, 22 mm
- O2 Bleed in (Device): 0–30 L/ min
- Mains Supply: 100–240 V AC
- External DC: 12–24 V
- Xpac Extended-life Backup Battery (optional): 36 hours (IPAP 20 cm/EPAP 8 cm, Rate 15 bpm)
Dimensions :
- W x H x D: 166 x 185 x 200 mm
- Weight: 1.6 kg
- Noise Level (at 10 cmH2O constant pressure)
- Less than 28 dB(A)
Connectivity and Software :
- Built-in Connectivity: USB
- Compatible Software: PC Software, EveryWare Remote Connectivity Solution
- Plug-and-Play Accessories: SpO2, Nurse Call, Remote Alarm, Accessories Box
Other :
- Humidification: Integrable water chamber
- Circuits: Cleanable and disposable leakage circuits with / without heated wires
- Confirm Stop: On, Off
- Compliance/Therapy Data (on screen): Compliance/Usage Data, AHI, AI, HI, IPAP, EPAP, Leakage, Vte, MVe, Total Rate, % Spont Breaths, Insp Time, I:E
Accessories and Product Warranty :
- Standard masks and accessories are included. If you need other accessories, please contact us before you purchase.
- 2 years warranty after purchase. We warrant the product to be free from defects in materials and workmanship in the first year after purchase when used normally, but maintenance costs will be calculated separately in the second year.
- All accessories are consumables, and not including maintenance.
