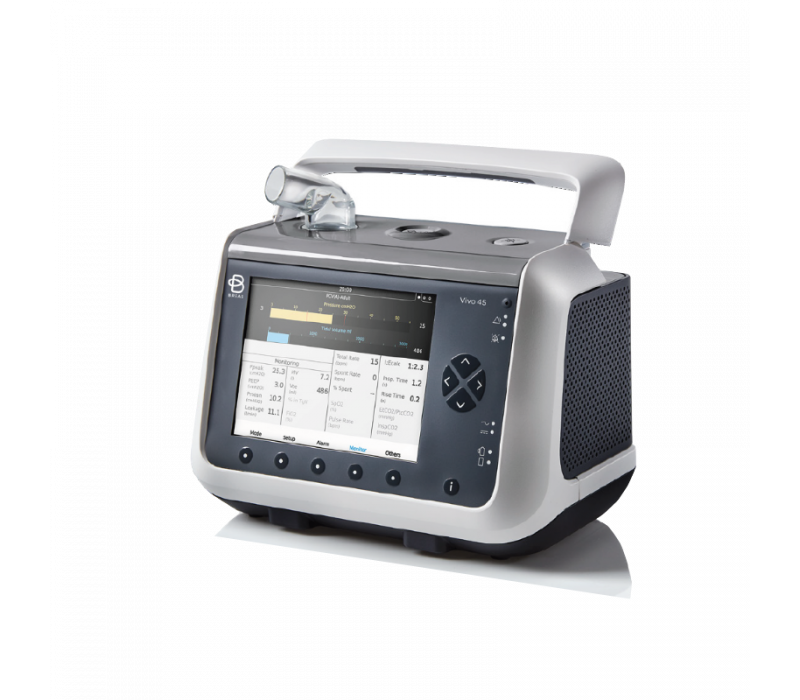

Vivo 45 – DESIGNED FOR EVERYDAY LIFE. Comfortable. Compact. Connected.
To cater to a wide range of respiratory conditions, a ventilator must excel in clinical versatility and performance. Equally important is the consideration for the patient’s daily life, activities, and home environment. That's why we developed the Vivo 45, a ventilator designed to enhance comfort and promote ease of use. By focusing on simplicity, the Vivo 45 ensures seamless integration into the patients' routines, providing both mobility and independence in managing their respiratory needs.
To cater to a wide range of respiratory conditions, a ventilator must excel in clinical versatility and performance. Equally important is the consideration for the patient’s daily life, activities, and home environment. That's why we developed the Vivo 45, a ventilator designed to enhance comfort and promote ease of use. By focusing on simplicity, the Vivo 45 ensures seamless integration into the patients' routines, providing both mobility and independence in managing their respiratory needs.
Key Features :
- DESIGNED FOR EVERYDAY LIFE
- Small, neat and user friendly
- Integrated humidifier with heated wire circuit
- 2.5 h internal + 6.5 h click-in battery for use on the move
- Optional extended-life backup battery
- EveryWare − secure cloud-based remote connectivity solution
- PC Software – desktop-based with Live Viewer
- Options for a wide range of conditions and patients from 10 kg
- Integrated polygraphy tracing: SpO2, FiO2, CO2, respiratory effort belts
- Pressure modes with target volume and Auto-EPAP algorithms
- PCV Mouthpiece Ventilation Mode
- Easy to learn, easy to use
Product Specification :
- Ventilation Modes: PSV, PSV-AE, PSV(TGV), PSV(TGV)-AE, PCV, PCV-AE, PCV(TgV), PCV(TgV)-AE, PCV(A), PCV(A)-AE, PCV(A+TgV), PCV(A+TgV)-AE, CPAP, PCV-MPV
- Patient Modes: Adult/Paediatric (>10 kg)
- Device Modes: Home/Clinical
- Settings Profiles: Three profiles
- Inspiratory Pressure: 4-40 cmH2O
- PEEP: 2-20 cmH2O
- Breath Rate/Back-up Rate: Adults: 4-40 bpm, Paediatrics: 6-60 bpm
- Inspiratory Time: 0.3-5s
- Backup Inspiratory Time: 0.3-5s (PSV)
- Rise Time: 1-9 (PSV, PCV)
- Inspiratory Trigger: 1-9 (PSV, PCV), Off (PCV)
- Expiratory Trigger: 1-9 (PSV)
- Minimum Inspiratory Time: Off, 0.3-3s
- Maximum Inspiratory Time: Off, 0.3-5s
- Target Volume: Adults: 300-2000 ml, Paediatrics: 100-500ml
- Auto-EPAP: On/Off, Min/Max EPAP: 2-20 cmH2O, PS: 2-40 cmH2O -Max EPAP, EPAP Step: 0.5-2 cmH2O, Relax Time: 120-720 sec/Off, Min PS/Max PS: 2-40 cmH2O, -Max EPAP, Pressure Limit: Max EPAP +2 cmH2O-40 cmH2O
Power Supplies :
- Mains Supply: 100–240 V AC
- External DC: 12–24 V
- Click-in Battery: 6.5 hours
- Internal Battery: 2.5 hours
- Xpac Extended-life Backup Battery (optional): 18 hours (IPAP 20 cm/EPAP 8 cm, Rate 15 bpm)
Monitoring :
- Displayed Data: Ppeak, PEEP, Pmean, Leakage, MV, Vt, FiO2, % in TgV, Total Rate, Spont Rate, % Spont, SpO2, Pulse, Rate, I:E, Inspiratory Time, Rise Time, EtCO2, PtcCO2, AHI
- Waveforms: Pressure, Flow, Volume, EtCO2, Effort Belts
- Trends over 1, 6, 24, 48 h and 10 days on device screen: Ppeak, PEEP, Total Rate, Spont Rate, Vt, Leakage, SpO2, EtCO2
Dimensions :
- W x H x D: 216 x 159 x 152 mm
- Weight: 2.4 kg
- Noise Level (at 10 cmH2O constant pressure): Less than 28 dB(A)
Connectivity and Software :
- Ethernet, USB
- Compatible Software: PC Software, EveryWare Remote Connectivity Solution
- Plug-and-Play Accessories: SpO2, FiO2, PtcCO2, EtCO2, Effort Belts, Nurse Call, Remote Alarm, Remote Start / Stop
Other :
- Humidification: Integrable water chamber
- Circuits: Disposable leakage circuits with / without heated wires, Disposable MPV circuits
- Intended use: The Vivo 45 is intended to provide non-invasive or invasive ventilation for patients weighing over 10 kg (22 lbs) who require long-term support or mechanical ventilation for respiratory insufficiency or respiratory failure, with or without obstructive sleep apnea. The Vivo 45 is intended for spontaneously breathing patients.
Accessories and Product Warranty :
- Standard masks and accessories are included. If you need other accessories, please contact us before you purchase.
- 2 years warranty after purchase. We warrant the product to be free from defects in materials and workmanship in the first year after purchase when used normally, but maintenance costs will be calculated separately in the second year.
- All accessories are consumables, and not including maintenance.
- A free of charge Oximetry Test Report will be provided once a year.
